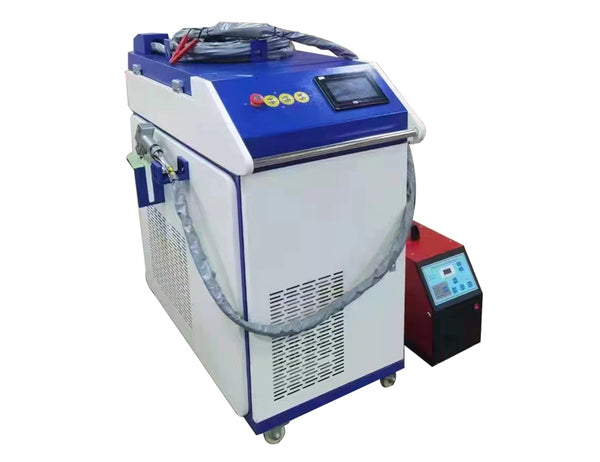

Handheld fiber laser welder for metal 10years experience, professional team ,operate easy, no need professional worker, manufacturer promotion.2 years warranty,save cost.
I.laser welder application:
laser welding machine is widely used in many industries, such as kitchen, household appliances, advertising, mold, stainless steel doors and windows, handicrafts, household products, furniture, auto parts, etc.
II.Feature:
The handheld laser welding machine produced by Yahong company has the following characteristics；
1.We integrate laser power, water chiller, software control etc,with small floor area, convenient movement, strong functionality, meeting ergonomic design, applicable to various working environment scenarios;
2.It can weld all kinds of metal materials such as carbon steel, stainless steel, aluminum plate, copper plate etc.
3.It is suitable for tailor welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;
4.The welding seam is beautiful, uniform, free of welding scar and discoloration, and does not need to be polished in the later stage. Save labor hours.
5.The welding is firm, and the weld strength reaches or even exceeds the base metal itself;
6.One time welding forming, basically no deformation, meeting the requirements of high quality products
7.Welding speed is fast, 2-10 times faster than traditional welding, a machine can save at least 2 welders a year。
8.The operation is simple, easy to learn and fast to start, the operator's technical threshold is not high, and the labor cost is saved.
9.Low cost, power consumption is only 1 / 10 of that of general argon arc welding or gas shielded welding。
10.Laser welding consumables less, long life.
11.Red light positioning, more accurate welding position.
12.Equipped with 10 meter optical fiber cable, more flexible and convenient operation。
13.Safer and more environmentally friendly。
14.No wire feeding or automatic wire feeding, two functions are optional。
III.Weld penetration table：
| Model | Carbon steel | Stainless steel | aluminium | red copper |
| 1000w | 2.06mm | 2.68m | 2mm | --------- |
| 1500w | 2.77mm | 3.59mm | 3mm | 0.2mm |
| 2000w | 3.59mm | 4.57mm | 4mm | 0.3mm |
| 3000w | 4.79mm | 6.87mm | 4mm | 1mm |
Note: the actual welding thickness can refer to the penetration and be determined according to the actual demand. If welding wire or double-sided welding is selected, the welding thickness can be greater.
IV.Welding type：
V.Fiber laser welding machine Consumables：
VI. Fiber handheld laser welding machine welding videos:
VII.FAQ:
1. This laser weld machine also need others?
It only need nitrogen gas as protective gas.and also can use argon.but nitrogen is more cheaper than argon.
2.Does need professional technical to operate this machine?
No. this machine operate is very easy. everyone can operate it . it only need about 10mins can learn it.
3.What is consumables life?
For nozzles and protective lens, both can use about 10-15days.
4.It need wire or not ?
We have both model.one is without wire feeder , it use for material section is vertical.such as fiber laser cutting workpiece.The other is with wire feeder.It use for material have a little gap.and it can increase welding strength and penetration.
5.what type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.
6.If i buy machine without wire feeder, can add wire feeder later?
No. because the laser head and controller are all different.
VIII. Certificates:
