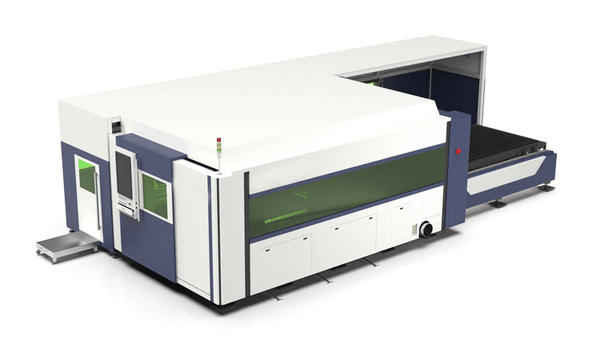

sheet tube laser cutting machine with exchange table and cover

Fully closed double table sheet &tube metal laser cutter

1. Quality advantage: good quality, high efficiency and stable operation

2. Service advantages: fast response, fast production, including teaching

3. Produced strictly according to European standard.

4 The products have passed CE certification and are exported to many European countries.

5. Provide OEM service.

Sheet Tube Integrated Laser Cutting Machine

Features

1. One Machine with Two Functions
It can cut both sheet and tube metals, replacing a professional sheet laser cutting machine and tube laser cutting machine in total. For users, it will expand their scope of cutting materials and enhance their market competitiveness.
* Save purchasing costs
* Improve cutting efficiency
* Accept more diversified orders
2.Double Table ,Save time for loading and unloading materials;
3.The cutting area is protected by a cover to prevent splashes and be safe;

4.With a camera, the cutting situation is clear at a glance.


Advantages

Steel Plate Welding Bed

1)Our machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2)Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;


Cast Aluminum Beam

Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;



fiber laser cutting machine x beam aluminum



Professional Laser Cutting Control system

*.Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc.
* Provide fine cutting technique, smooth start and end in the toolpath cutting.
* Support intelligent barrier avoidance, laser head frog-leap lifting in production.
* Support scan QR import drawing, task scheduling, and multi-area production etc.
* Maximum acceleration 1.5G.
* Provide dual-Y drive position error detect function.
* support standard tube(rectangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.
* Support offset tube center error in production to improve through holes cutting precision.
* Suppport seperate technique for corner cutting.



6000w sheet tube laser cutting machine

Intelligent bus control cutting head, Active Collision Prevention

It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently;
Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

auto focus laser head for laser cutting machine



Imported Parts, Precision Guaranteed

　
　
　
Equipped with dual
high-powered servo motors and drivers which from German 		Core transmission parts like speed reducer and gears are imported from Japan High-precision racks,
guide rails and ball screws are produced by world-famous brands.


Top Brand Laser Power

(Meet different customer needs)

ipg laser power 6000w　 Max laser power 6000w　 　Raycus laser power 6000w
IPG Laser Power Max Laser Power Raycus Laser Power



 Quality Control System

Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards

Cutting Samples

　 　 　
laser tube cutting machine 1000w-6000w 　laser pipe cutting machine 1000w-6000w 　tube cutting machine 1000w-6000w 　pipe cutting machine 1000w-6000w


  Parameters

Model JLMDS3015 JLMDS4015 JLMDS4020 JLMDS6020 JLMDS6023 JLMDS6025 JLMDS8023 JLMDS8025
Power 1000W-6000W
Working Area (L*W) 3000*1500mm 4000*1500mm 4000*2000mm 6000*2000mm 6000*2300mm 6000*2500mm 8000*2300mm 8000*2500mm
Diameter(mm) 120 / 160 / 220 / 280 / 320 / 350
Tube length(mm) 3000 / 6000 / 7000 / 9000
Maximum revolutions of chuck(RPM) 80-120
X/Y-axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y-axis Repositioning Accuracy ±0.01mm ±0.01mm ±0.01mm ±0.01mm ±0.01mm ±0.01mm ±0.01mm ±0.01mm
Positioning speed 90m/min 90m/min 90m/min 90m/min 90m/min 90m/min 90m/min 90m/min
Max. Acceleration 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G

*The above data are for reference only, subject to the actual product!
