light gantry plasma cutting machine ,body is aluminium. stable and beautiful . hybird servo motor and driver,fastcam software,and remote control is easy to operate. professional sales and after service team, 7*24hours on line service.
I.Advantages:
1. Install the plasma automatic height controller. During the machine cutting process, the cutting torch can automatically rise and fall according to the unevenness of the steel plate to prevent the cutting gun from crashing, extend the life of the cutting torch, and save costs. Optional: flame automatic height controller.
2. The control system has a graphic display function, which can observe the cutting process in real time. And supports 9 languages, it is easier to use your own native language to operate. With power-off memory function, you can continue cutting after the power on, saving time for cutting from the beginning. There are 48 kinds of graphics, regular graphics can be directly used, change the size, set the quantity, save the computer drawing time and improve efficiency.
3. Adopting well-known brand leadshine hybrid servo motor driver, stable operation, low noise and no step loss. (can choose step motor and driver)
4. Install a special reducer to reduce the speed and increase the torque to make the machine run more smoothly.
5. Install flame automatic igniter and tempering device to avoid burning hands when igniting with a lighter and explosion due to tempering during cutting to ensure safety.
6. Install the plasma anti-collision holder, which will automatically stop when the torch hits the steel plate to prevent the torch from crashing and save costs.
7. The use of professional T-rails ensures the long-term stability of the machine.
8. Equipped with fully automatic nesting software, which saves time for typesetting and improves the utilization rate of steel plates.
9. Optional remote control, the control distance is 30 meters, the operation is more convenient.
10. It can be equipped with various power plasma power sources, 100A 130A 200A 300A 400A, to achieve plasma thick plate cutting. The plasma cutting speed is 3-5 times that of flame cutting, which improves production efficiency.
II. CNC plasma cutter Technical Parameters
| 1 | Cutting Shape | Steel plate with any plane shapes fromed by straight lines and arcs. | |||||||||||
| 2 | LCD Display Dimension | 10.4"Inches | |||||||||||
| 3 | Effective Cutting Size | 2000*6000mm(other size can be made) | |||||||||||
| 4 | Flame Cutting Thickness | 5-200mm | |||||||||||
| 5 | Plasma Cutting Thickness | 0.5-35mm (according to plasma power) | |||||||||||
| 6 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) | |||||||||||
| 7 | Motor and driver | Hybird servo motor and driver(also can choose step motor and panasonic servo motor) | |||||||||||
| 8 | Reduce | Chinese top reducer | |||||||||||
| 9 | Cutting Speed | 0-10000mm per minute | |||||||||||
| 10 | Drive Mode | Double driver | |||||||||||
| 11 | Cutting Mode | Plasma and flame cutting | |||||||||||
| 12 | lifter | one lifter for plasma and flame(two lifters can be customized) | |||||||||||
| 13 | Ignition Device | Auto | |||||||||||
| 14 | File Transmission | USB | |||||||||||
| 15 | Cutting Gas |
Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
|||||||||||
| 16 | Gas Pressure | Max. 0.1 Mpa | |||||||||||
| 17 | Oxygen Pressure | Max. 0.7 Mpa | |||||||||||
| 18 | Cutting Accuracy | ±0.5mm | |||||||||||
| 19 | Software | Professional Nesting Software(support Auto CAD/ Solidworks/ CAXA/ Types etc.) | |||||||||||
| 20 | Power Supply Voltage/Frequency | 220V/110V 50HZ 60HZ | |||||||||||
| 21 | Rated Power Supply | 1500W | |||||||||||
| 22 | Working Temperature | -10ºC-60ºC. Relative Humidity from 0-95% | |||||||||||

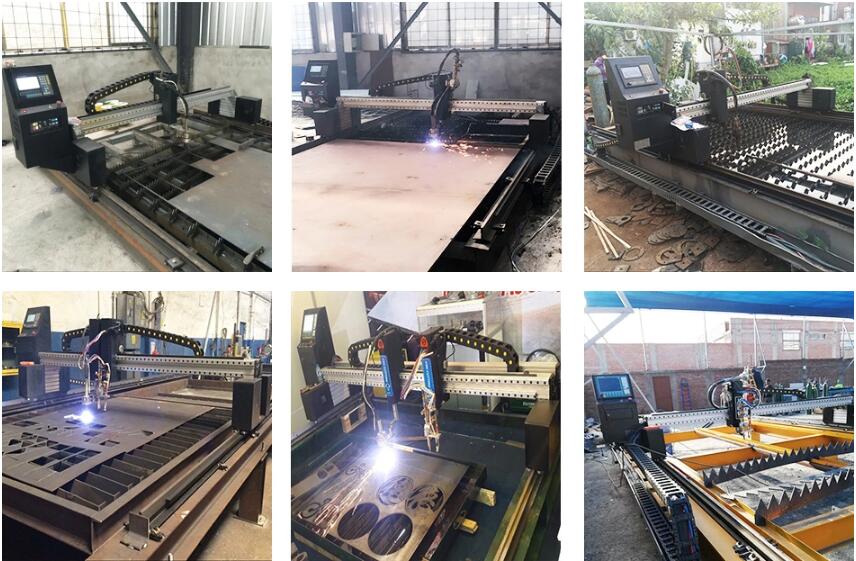

III. Plasma cutter photos:
IV. Plasma cutting machine operate steps:
V.CNC plasma cutting machine cutting samples:
VI.gantry plasma cutting machine video:
VII.Certificates:
